Combinest

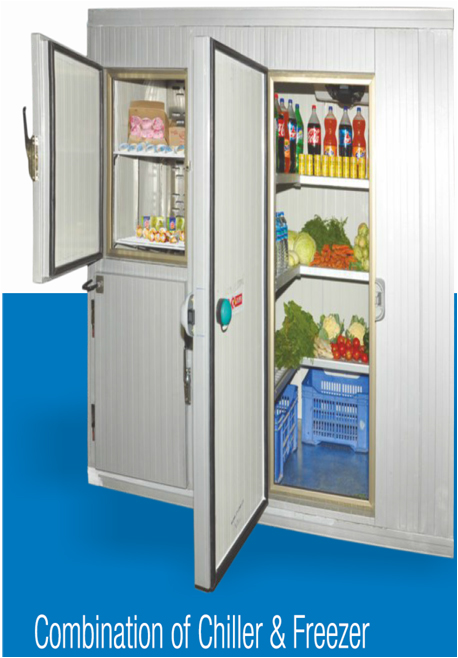

Chiller cum Freezer

Size ( in mm) 2400 x 1200 x 2100 ( 1500 x 1200 x 2100 - Chiller) ( 900 x 1200 x 2100 - Freezer)
Temp. in Deg.C 2 to 8 Deg.C for Chiller -15 to -18 Deg.C for Freezer
Product Multi Product for chiller & Frozen products for freezer
Storage Space in ltr 3000 ltr for Chiller & 1500 ltr for Freezer
Door Size in mm 600 x 1650 - 1 No for Chiller 550 x 750 - 2 No for Freezer
Type of System DX Type
Connected Power 4.9 kW , 1 Phase, 50 Hz
Power Consumption 2.6 kW / hr


  • HACCP & FDA Compatible

Combinest Vs Conventional Cooler/Freezer

Item Combinest Conventional Cooler & Freezer
Capacity 1 No. - 3000 ltr Chiller & 1500 ltr Freezer 6 No Coolers & 3 No. Freezers (500 ltr each)
Foot Print Area Reqd in Sqft 56 250
Material Handling FIFO LIFO
Type of Cooling Forced Draft Convection Transfer
Power Consumption 30~ 40 Units per day 60 ~65 Units per day
Compatibility HACCP, FD Not suitable for Critical Application
Type of Storage Racks ( included ) Bulky storage
Door Acessibility Vertical Door- Easy acess Top Acess only

  • Rental Saving – INR 36,000/- per annum & Power saving – INR 80,000/- per annum
